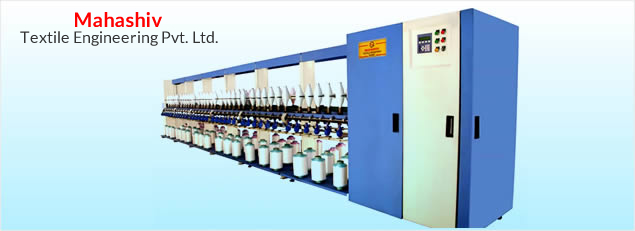

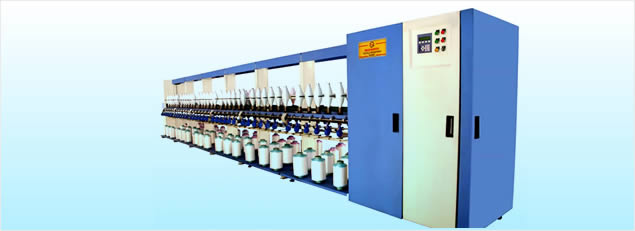

Semi Servo Cops Winder
Semi Servo Winder
Technical Specification
| Models | MTI - GMD (Geared Motor Drive ) | ||||
|---|---|---|---|---|---|
| No. of Spindle | 48 | 60 | 72 | 84 | 96 |
| Machine Length in meter | 6.460 | 7.700 | 8.940 | 10.180 | 11.420 |
| Machine Width in mm | 950 mm | ||||
| Machine Height in mm | 1600 mm | ||||
| Spindle Pitch | 185 mm | ||||
| No. of Spindles / section | 12 Spindles ( 6 x 2 ) | ||||
| Spindle RPM | 7000 Max | ||||
| Spindle Drive | Tangential Belt | ||||
| Take Up Pirn ( Cops ) | 32 mm ID x 240 mm / 270 mm L. 37 mm ID x 270 / 320 mm L. |
||||
| Take Up Content | upto 1200 gms. | ||||
| Supply Package | Cops, Cheese, Cone | ||||
| Yarn Speed | 800 mtr/min. | ||||
| Denier Range | 30-300 Denier | ||||
| Tension | Dial Set Gate Tensioning Device | ||||
| Spindle Drive Motor. | 48 to 72 Sp - 3 H.P., 84 to 96 Sp - 4 H.P. | ||||
| Traverse Drive Motor | MTI - GMD 1 H.P. | ||||
| Traverse Stroke | 290 mm Max | ||||
| Traverse Slide System | Guide Way Ball Screw | ||||
| Oiling Device | By Motor Drive | ||||
| Oiling Device Control | Manually Controlled by Speed Regulator | ||||
